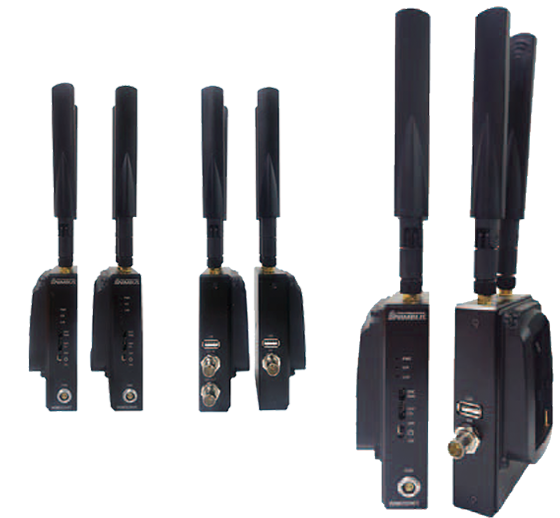

WiMi5200
NIMBUS
WiMi5200 Catalog Download
Wireless SDI for HD/3G-SDI by H.264 with Zero Latency(30ms)
Radio Coverage: 600m (2,000ft) at line of sight
Characteristics of WiMi5200
- Full HD sender (Ethernet or Wireless)
- H.264 (MPEG-4 Parts10 : AVC)
- Baseline Profile with level 4.2
- Zero delay (10ms), end-to-end (30ms), H.264 engine
- Transmission of 1080p60 3G-SDI over Wi-Fi
- Video formats of DTV Spec
- Small Form Factor
- WiMi5200 (w/ Antenna): 258 x 68 x 25 (mm), 310g
- WiMi5200 (Main Body): 118 x 68 x 25 (mm), 260g
- Live streaming from Camcorder over Wi-Fi
- Full HD live streaming over Wi-Fi
Applications & Interfaces of WiMi5200
- Multi Camera Shooting
- Multiple pairs of operation at one location
- Comfortable & Wide coverage of Wireless
- Wireless: up to 600m (2,000ft) @ line of sight in open space
- IEEE 802.11n, 5 GHz (12 Ch. @ 40MHz)
- Applications
- Drone/UAV Video transmission
- Wireless ENG/SDI camera
- Digital signage, wireless Kiosk, medical imaging
- Interfaces
- SDI input with looped SDI output
- DIP switches: Selection of Wi-Fi frequency and encoding rate
- USB: Firmware update
Video & Radio of WiMi5200
Supported SDI Format
- Standard Description
-
SMPTE 244 (NTSC)480i59.94 (Output: 1080i59.94)
-
IEC61179-5 (PAL)576i50 (Output: 1080i50)
-
SMPTE 296M720p50, 720p59.94, 720p60
-
SMPTE 274M1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25,
1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080p50,
1080p59.94, 1080p60
Radio Specification
- Standard Description
-
Wi-Fi StandardIEEE 802.11n, FCC/CE/KC Approval
-
FrequencyU-NII-1(5.15~5.25GHz), U-NII-2A(5.25~5.35GHz),
U-NII-2C(5.47~5.725GHz), U-NII-3(5.725~5.85GHz) -
Number of Wi-Fi Ch.12 Wi-Fi channels @ 40MHz channel bandwidth
-
Transmission DistanceUp to 600m (2,000 ft) @ line of sight
-
Transmission PowerMax. 50mW (17 dBm)/chain, Total: 100mW (20 dBm)
-
Antenna2T x 2R MIMO

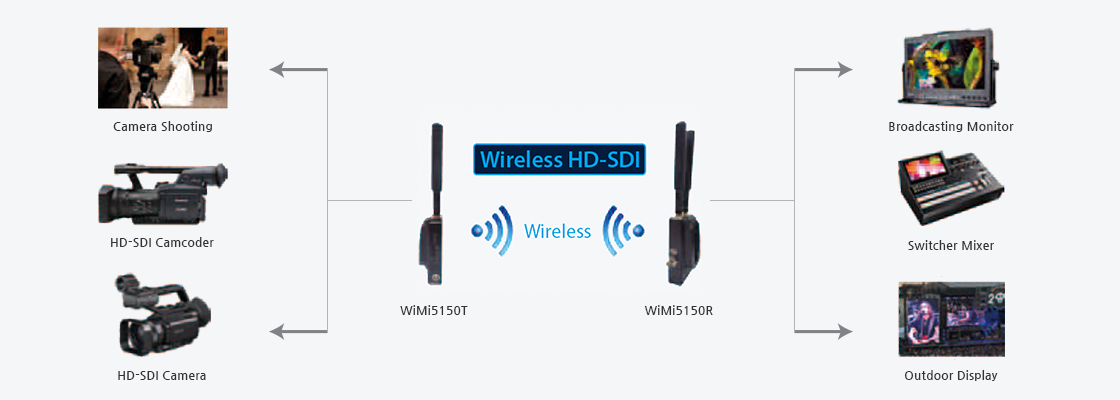

Applications of WiMi5200
