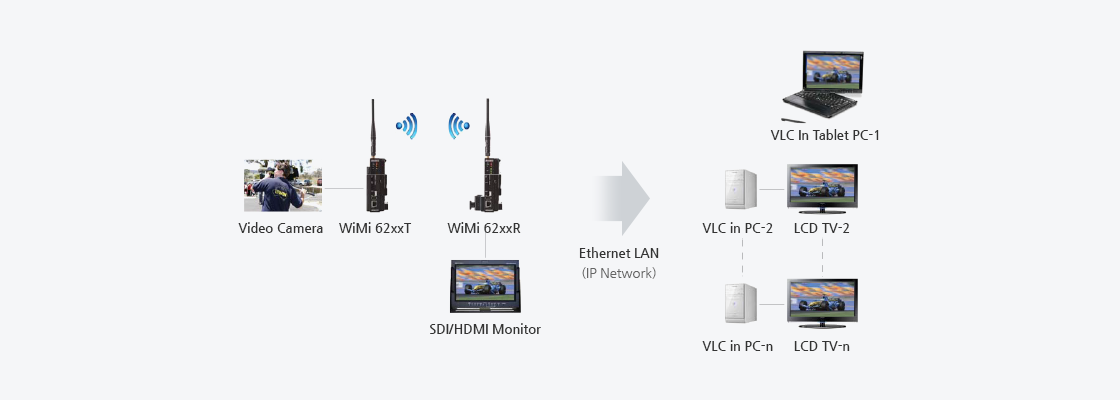

Relay Streaming Server in WiMi62xxR

  • - Watch video through your PC over Ethernet LAN (IP)
  • - Unicast IP: Maximum 32 RTSP clients with limited encoding rate
  • - Multicast IP: No limits on the number of RTSP/MPEG2TS clients
  • - PC, Tablet or Smart Phone

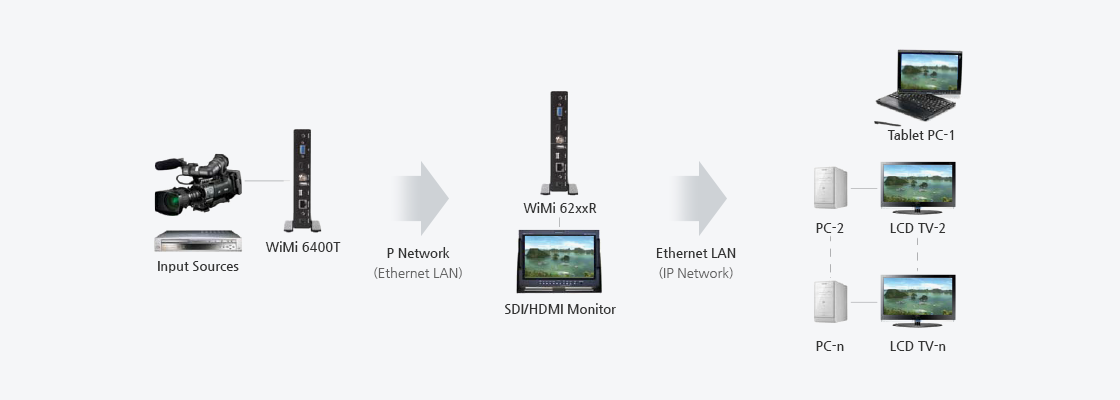

Relay Streaming Server in WiMi6400R

  • - Simultaneous decoding and streaming in the WiMi6400R
  • - Save cost with single video delivery over public IP network for video distribution without multiple video transmissions.
  • - Watch video with your PC over Ethernet LAN (IP)
  • - Maximum 32 RTSP clients with limited encoding rate (unicast IP)
  • - No limits on the number of RTSP clients (multicast IP)
  • - PC, Tablet PC or Smart Phone (through wireless AP)

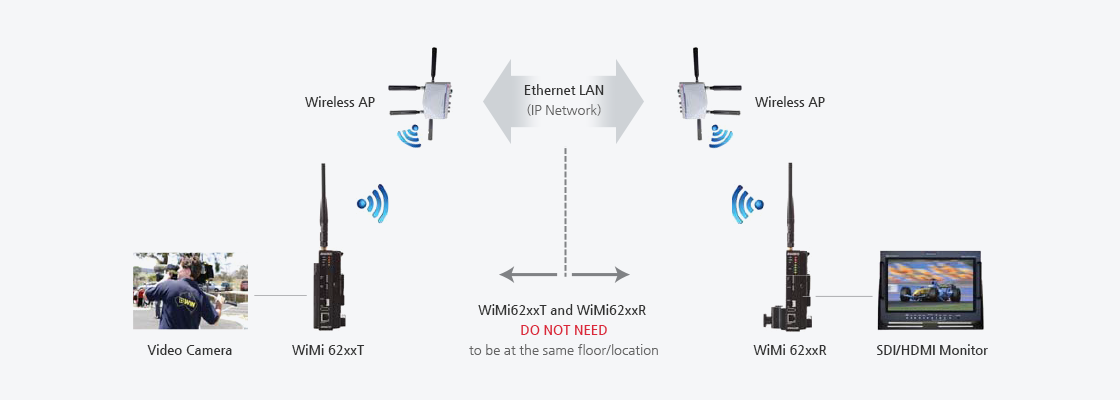

Station(Client)-mode Operation of WiMi62xxT/WiMi62xxR

  • - An WiMi62xxT in Station mode and an WiMi62xxR in Station mode can transmit and receive the video when those are connected each other through one or two wireless Access Points (APs).
  • - f the WiMi62xxT and WiMi62xxR were connected to the two different wireless APs, then two APs must be connected through the LAN or IP network.
  • - Wireless IP address of the WiMi62xxT and WiMi62xxR can be assigned by user, or DHCP of the wireless AP.
  • - The WiMi62xxR can be located anywhere if both the wireless APs are connected each other via IP network.

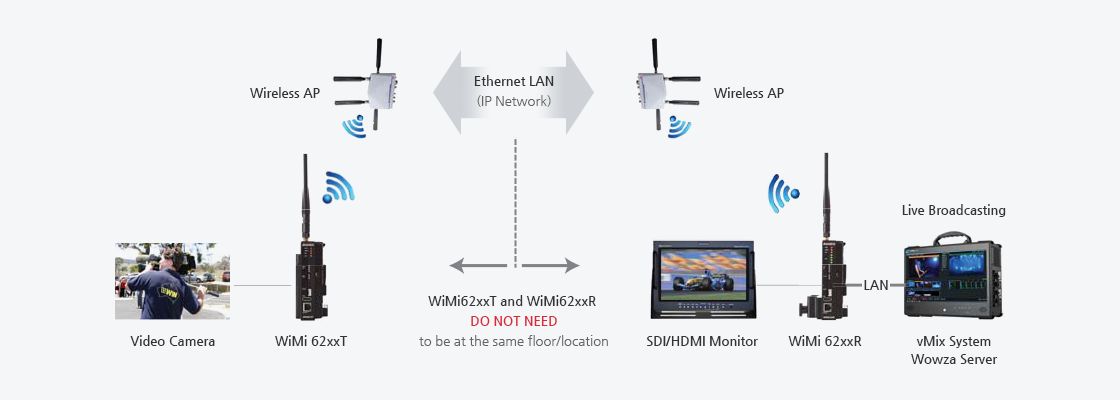

Station(Client)-mode Operationof WiMi62xxT/WiMi62xxR with Relay Streaming Server

  • - An WiMi62xxT in Station mode and an WiMi62xxR in Station mode can transmit and receive the video when those are connected each other through one or two wireless Access Points (APs).
  • - If the WiMi62xxT and WiMi62xxR were connected to the two different wireless APs, then two APs must be connected through the LAN or IP network.
  • - Wireless IP address of the WiMi62xxT and WiMi62xxR can be assigned by user, or DHCP of the wireless AP.
  • - The WiMi62xxR can be located anywhere if both the wireless APs are connected each other via IP network.
  • - The WiMi62xxR can be used for a relaying server for the broadcasting of live video

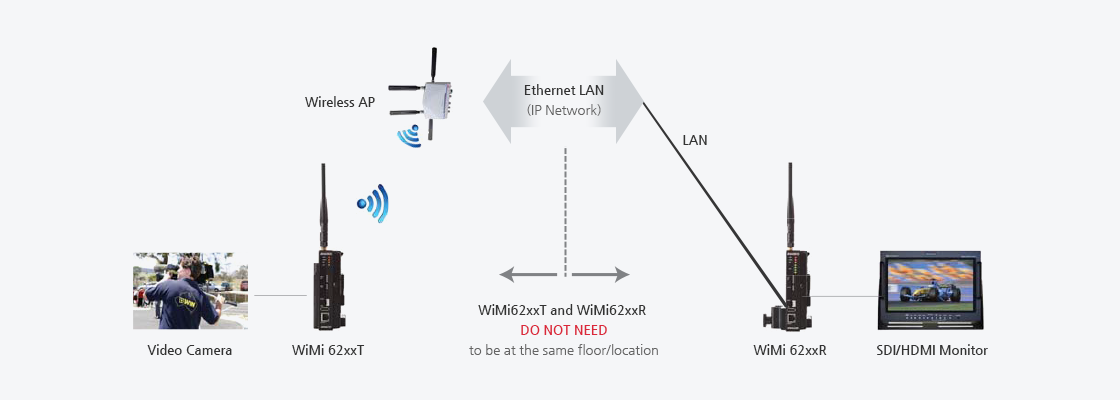

Station(Client)-mode Operation of WiMi62xxT LAN-mode of WiMi62xxR

  • - When an WiMi62xxT in Station mode is connected to an wireless AP, and the wireless AP is connected to the LAN/IP network,
  • - An WiMi62xxR with LAN mode can decode the video at anywhere the IP network is available.

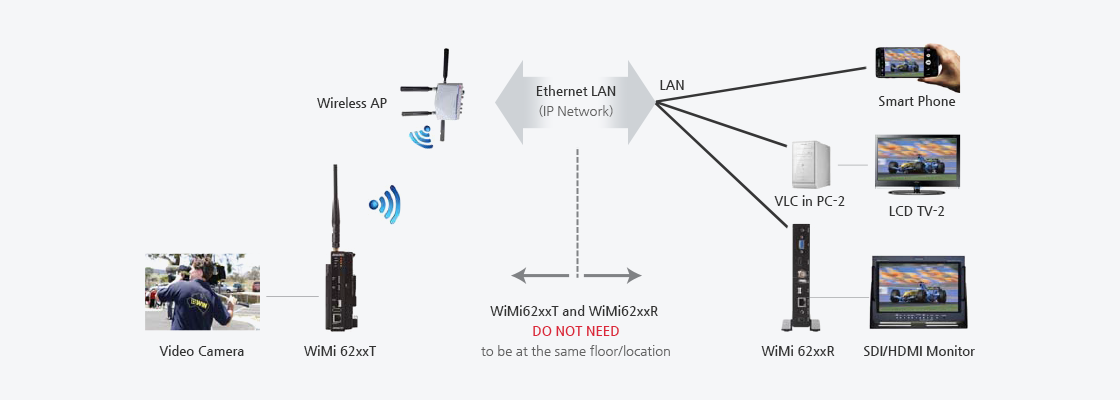

Station(Client)-mode Operation of WiMi62xxT and the use of WiMi6400R or Software Decoder

  • - When an WiMi62xxT in Station modeis connected to an wireless AP, and the wireless AP is connected to the LAN/IP network
  • - An WiMi6400R or software decoder like VLC player can decode the video at anywhere the IP network is available.

Nimbus, Inc. WiMi series offers Wireless/Ethernet H.264, Full HD (1920x1080p60), encoder/decoder solutions with near zero end-to-end latency (30ms ~ 90ms) over Wi-Fi or Ethernet/IP network.

  • WiMi4000

    - Ethernet HDMI/VGA/Composite, radio coverage of 1,500ft @ LOS

  • WiMi5150

    - Wireless HDMI with 30ms of end-to-end latency, radio coverage of 3,000ft @ LOS

  • WiMi6200

    - Wireless HD-SDI solution, radio coverage of 3,000ft @ LOS

  • WiMi6220

    - Wireless HD-SDI/HDMI solution, radio coverage of 3,000ft @ LOS

  • WiMi6400

    - HD-SDI/HDMI/VGA transmission over Ethernet or IP network

Station(Client)-mode Operation of WiMi62xxT and the use of WiMi6400R or Software Decoder

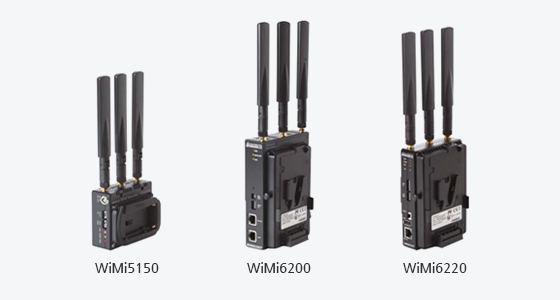

Comparison of WiMi5150, WiMi6200 & WiMi6220
Functions/Interfaces WiMi5150 WiMi6200 WiMi6220
Maximum Encoding Rate ~ 25 Mbps ~ 25 Mbps ~ 25 Mbps
Encoding/Decoding Latency 30ms 90ms 90ms
HDMI Port TX/RX - TX/RX
HD-SDI (3G-SDI) Interface - TX/RX TX/RX
Analog Audio Out (48kHz, 16-bit) - mini stereo phone jack -
Wi-Fi 802.11n (5GHz) Yes 802.11n (5GHz)
Radio Coverage (line of sight) 900m (3,000ft) RS422 900m (3,000ft)
RTSP, MPEG-2 TS Streaming Yes Yes Yes
RTSP, MPEG-2 TS Relay Streaming on Receiver - Yes Yes
Relaying Control Data (CCU) - mini stereo phone jack RS422
Ethernet over Wi-Fi (CCU) - 10/100Base-TX Yes
Station (Client) Mode of Wi-Fi - 802.11n (5GHz) Yes
2-way Talk-Back Audio (IFB) - 900m (3,000ft) mini stereo phone jack
Ethernet - Yes 10/100Base-TX
Web UI on USB port Yes Yes Yes
Battery Plate SONY NP Battery V-lock/Anton Bauer V-lock/Anton Bauer
Enclosure Dimensions (H x W x D, mm) 80 x 90 x 30 155 x 102 x 30 144 x 91 x 26
Power Consumption 12 Watts 12 Watts 11 Watts
Major Applications Short/Long range Wireless HDMI Short/Long range Wireless HD-SDI(Broadcasting) Short/Long range Wireless HDMI/HD-SDI(Broadcasting)
