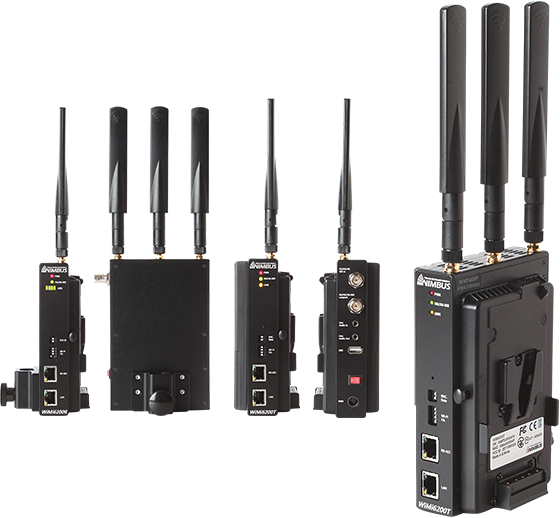

WiMi6200
NIMBUS

WiMi6200 Catalog Download

Wirelss SDI w/ Low Latency(80ms) Live Streaming by H.264 Encoder
Radio Coverage : 1,500m (5,000ft)

Characteristics of WiMi6200

Full HD sender (Ethernet or Wireless)
H.264 (MPEG-4 Parts10 : AVC)
Baseline Profile with level 4.2
Low delay (40ms), end-toend (80ms), H.264 engine
Transport 1080p60 full HD over wireless/Ethernet
SD/HD/3G-SDI video in/out with embedded audio
Selection of encoding rate & WiFi frequencies
2-way talk-back audio channel for embedded wireless audio
480i59.94, 576i/50, 720p60/59.94/50/30/29.97/25/24/23.98,
1080i60/59.94/50, 1080p60/59.94/50/30/29.97/25/24/23.98 and PsF format
Live streaming from broadcast camera
or CCTV over wireless/Internet
Full HD live streaming server on transmitter & receiver
RTSP streaming server(RTP/UDP)
MPEG2TS streaming (UDP)
Relay streaming server RTSP/MPEG2TS) on the receiver
Applications
Wireless Camera
Live Broadcasting
Medical Imaging
Low-cost Full HD Encoder
Full HD Live Streaming
RTSP/MPEG-2TS Server
Save bandwidth cost with multicasting
Maximum 2/4 receivers in wireless multicasting
Comfortable & wide coverage over Ethernet / Internet
Wireless : up to 900m (3,000 ft) @ line of sight in open space
Small form factor : 155x 30 x 102 (mm)
Light weight : 470g (no plate), 580g (V-mont) W / antennas
DC input range & power : 6.8V ~ 16V
Power consumption : 12W (TX), 10W (RX)

Interfaces of Wimi6200

Video Interfaces
SD/HD/3G-SDI input and output : up to 1080p60
SDI Looped output on the transmitter
Network & Control Interfaces
10/100 BASE-TX, cat.5e UTP cable
IEEE 802.11n, 5 GHz
Full duplex RS-422 or Ethernet interface for relaying external camera control
signals
Audio Interfaces
Embedded audio on SDI port
Analog : Stereo, 48kHz 16-bit linear PCM
External audio jack : Mini stereo phone
Wireless talk-back audio jack : Mini stereo phone

Supported SDI Format

Standard Description
SMPTE 244, BT601 (NTSC)
480i59.94
IEC61179-5, BT601 (PAL)
576i50
SMPTE 294M
720p23.98, 720p24, 720p25, 720p29.97, 720p90,
720p50, 720p59.94, 720p60
SMPTE 296M
1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25,
1080PsF29.97, 1080PsF30, 1080p23.98,1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60

Radio Specification

Standard Description
Wi-Fi Standard
IEEE 802.11n, FCC/CE/Telec/KC Approval
Frequency
4.90~5.09GHz, 5.15~5.25GHz, 5.5~5.7GHz with DFS, 5.725~5.85GHz
Transmission Distance
Up to 900m(3,000ft) @ line of sight
Transmission Power
Max.66mW (18dBm)/antenna, Total : 200mW(23dBm)
Antenna
3T x 3R MIMO
