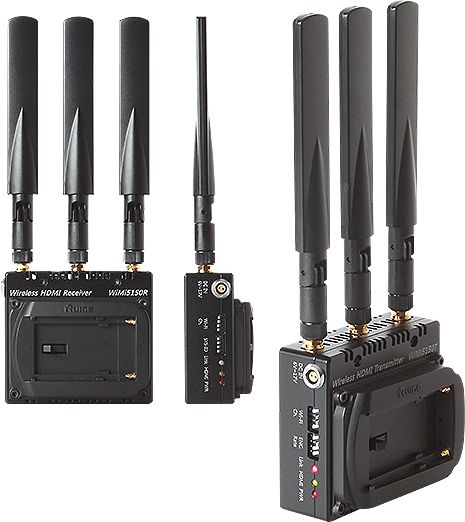

WiMi5150A
NIMBUS

WiMi5150A Catalog Download

Wireless HDMI by H.264 with Zero Latency(30ms)
Radio Coverage : 1,500m 5,000ft)

Characteristics of WiMi5150A

Full HD sender & receiver
H.264 (MPEG-4 Parts10: AVC)
Baseline profile with level 4.2
Zero delay (10ms), end-to-end (30ms), H.264 engine
Transmission of 1080p60 HDMI over Wi-Fi
Video formats of DTV and VESA Spec.
Live streaming from DSLR, Camcorder over Wi-Fi
Full HD live streaming server on transmitter
RTSP streaming server (RTP/UDP)
Small Form Factor
WiMi5150 (w/ Antenna): 220 x 90 x 30 (mm), 350g
WiMi5150 (Main Body): 80 x 90 x 30 (mm), 270g

Applications & Interfaces of WiMi5150A

Applications
Drone/UAV Video transmission
Wireless ENG/DSLR Camera
Digital signage, wireless Kiosk, medical imaging
Multicasting
Max. 3 receiver for wireless
Interfaces
HDMI: 1080p60, HDMI v1.3 compatible
Digital: Linear PCM with 16bit/48kHz sampling
IEEE 802.11ac Wi-Fi, 5 GHz band
Comfortable & Wide coverage of Wireless
Wireless: up to 1,500m (5,000ft) @ line of sight in open space

Video & Radio of WiMi5150A

Supported SDI Format

Standard Description
DTV (NTSC/PAL)
1920x1080i50, 1920x1080i59.94, 1920x1080p24, 1920x1080p50,
1920x1080p59.94, 1280x720p50, 1280x720p59.94, 720x480i59.94,
720x480p59.94, 768x576i50, 768x576p50
VESA
UXGA(1600x1200p60), SXGA(1280x1024p60), SXGA-(1280x960p60),
WXGA(1280x768p60), XGA(1024x768p60), SVGA(800x600p60),
VGA(640x480p60), 1080p30, 1080p50, 1080p59.94, 1080p60

Radio Specification

Standard Description
Wi-Fi Standard
IEEE 802.11ac, FCC/CE/Telec/KC Approval
Frequency
4.90~5.09 GHz, 5.15~5.25 GHz,
5.5~5.7 GHz with DFS, 5.725~5.85 GHz
Transmission Distance
Up to 1,500m(5,000ft) @ line of sight
Transmission Power
Max.66mW (18dBm)/antenna, Total : 200mW(23dBm)
Antenna
3T x 3R MIMO
