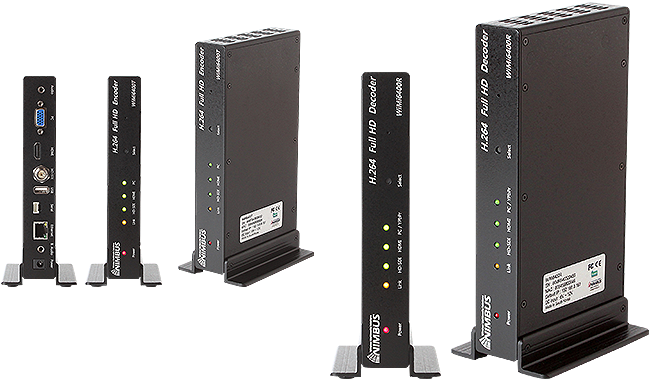

WiMi6400

Low Latency (80ms) Full HD & Streaming by H.264 Encoder

Characteristics of WiMi6400

Full HD sender over Ethernet/Internet
H.264 (MPEG-4 Parts10: AVC)
Baseline Profile with level 4.2
Low latency ,end-to-end (80~100ms), H.264 engine
Transport 1080p60 full HD over Ethernet/Internet
SD/HD/3G-SDI interface compliant with SMPTE
Video formats of DTV and VESA spec.
2 channel Linear-PCM and G.711 compressed audio
Maximum encoding rate of 30Mbps
Back channel audio
Save bandwidth cost
Multicasting: No limits on the number of receivers with multicast IP address
Relay Streaming server on the receiver side
Live streaming from Camera, CCTV or PC over Internet
Full HD live streaming server (Transmitter & Receiver)
RTSP streaming server (RTP/UDP)
MPEG-2 TS/UDP streaming
Flexible video output with video scaler on the receiver
Easy control with Web User Interface
Full duplex serial port for relaying external control signals
HD contents display for digital signage
Applications
Digital Signage
Control Room
Medical Imaging
Full HD Video TX
Low-cost Full HD Encoder
Full HD Live Streaming
RTSP/MPEG-2 TS Server
Education/Multi-Vision

Interfaces of WiMi6400

Video Interfaces
SD/HD/3D-SDI (SMPTE standard)
HDMI (DVI): up to 1080p60, HDMI v1.3 compatible
PC (HD-15): VESA formats up to 1920 x 1080p60
Network Interfaces
10/100 BASE-TX, Cat.5e UTP cable
Power over Ethernet (PoE) device (Option)
Audio Interfaces
Digital: Linear PCM (44.1kHz/48kHz)
Analog: Stereo, 48kHz 16-bit linear PCM, G.711
Back channel audio: 8kHz 16-bit linear PCM
Analog audio jack: 3mm mini stereo phone

Video Specifications of WiMi6400

Supported SDI Format

Standard Description
HDMI (VESA)
1080p60/p59.94/p50/p30/p29.97/p24/p23.98/i59.94/i50, 720p60/p59.94/
p50, 576p50,WSXGA+(1680x1050), SXGA(1280x1024),WXGA(1280x800),
XGA(1024x768), SVGA(800x600),VGA(640x480)
SMPTE244
480i59.94 (NTSC)
IEC61179-5
576i50 (PAL)
SMPTE 296M
1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 080PsF24, 1080PsF25,
1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60
SMPTE 274M
1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 080PsF24, 1080PsF25,
1080PsF29.97, 1080PsF30,1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60
